Remote sites include a variety of critical equipment such as generators, UPS systems, HVAC units, batteries, repeaters or transmitters. All these components must work together to maintain reliable communications. But when sites are spread across large regions and located in remote, hard-to-access areas, every service call becomes a serious expense in time, fuel and technician availability.
Your All-in-One Solution for Davicom Alarm & RTU Management
Why Monitoring Matters
This is why adopting a remote monitoring approach with Mosaic is not only smart, it is essential. With Mosaic, every site visit becomes an opportunity to save money. You know exactly where the problem is before anyone leaves the office. You bring the right part with you. You avoid wasted trips and fix issues faster.
In today’s labor environment, this matters more than ever. Technical teams are stretched thin and must support more sites with fewer resources. Their time is valuable. Davicom’s remote site management tools protect that time by turning reactive work into smart proactive service. The result is better uptime, fewer surprises and a more efficient operation.
Watch Live Demo
This webinar presents Davicom’s distributed intelligence approach using Davicom Cortex RTUs and Mosaic NMS for public safety repeater networks.
The Role of the NMS in an RTU-Based Monitoring Network

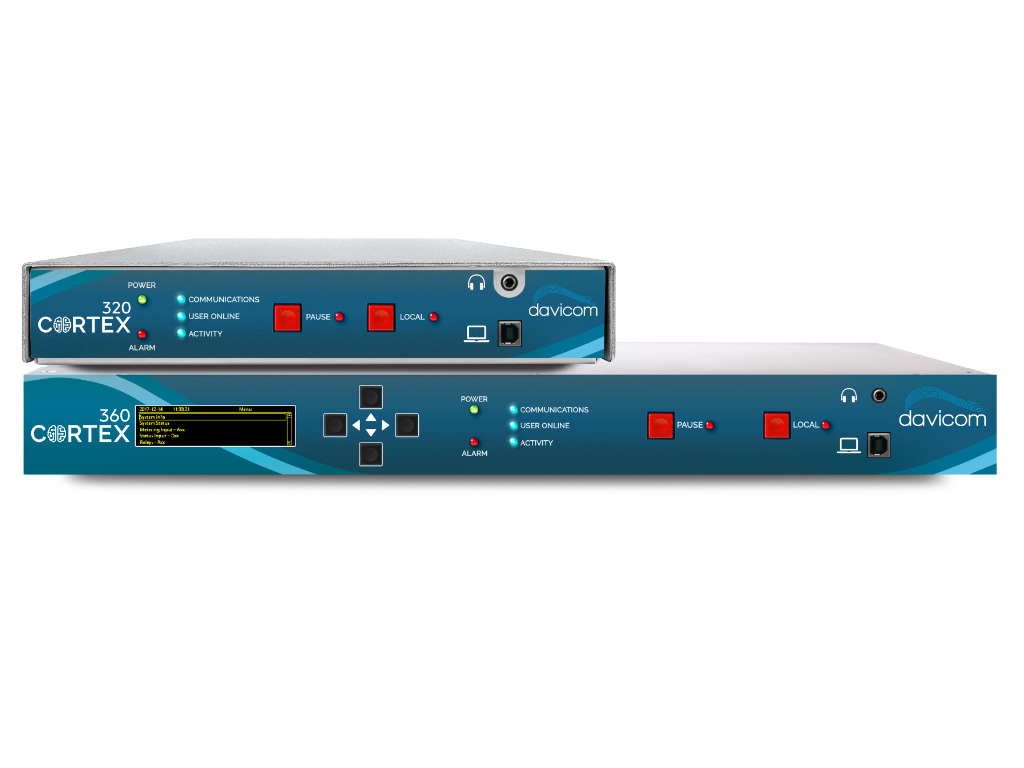

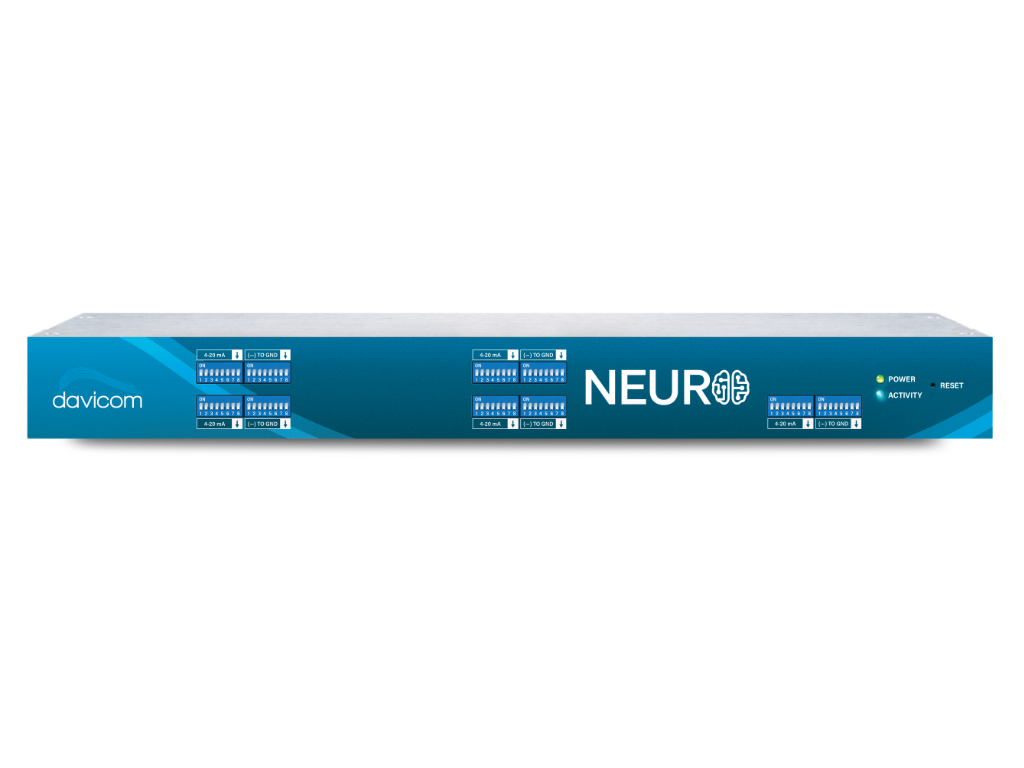

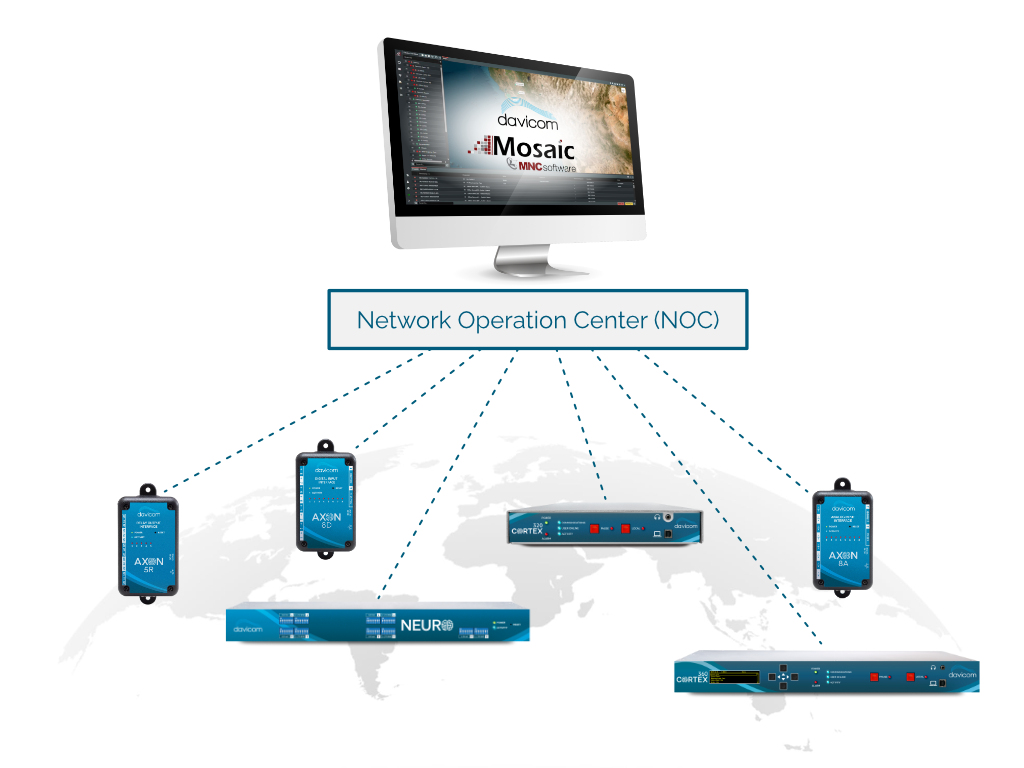

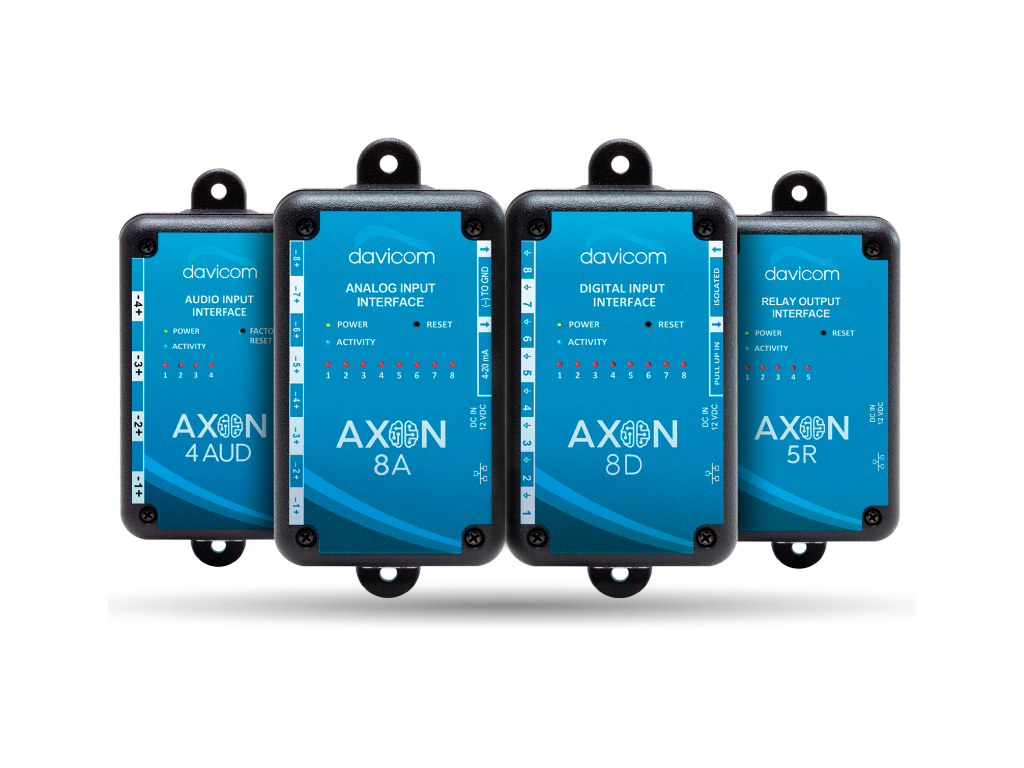

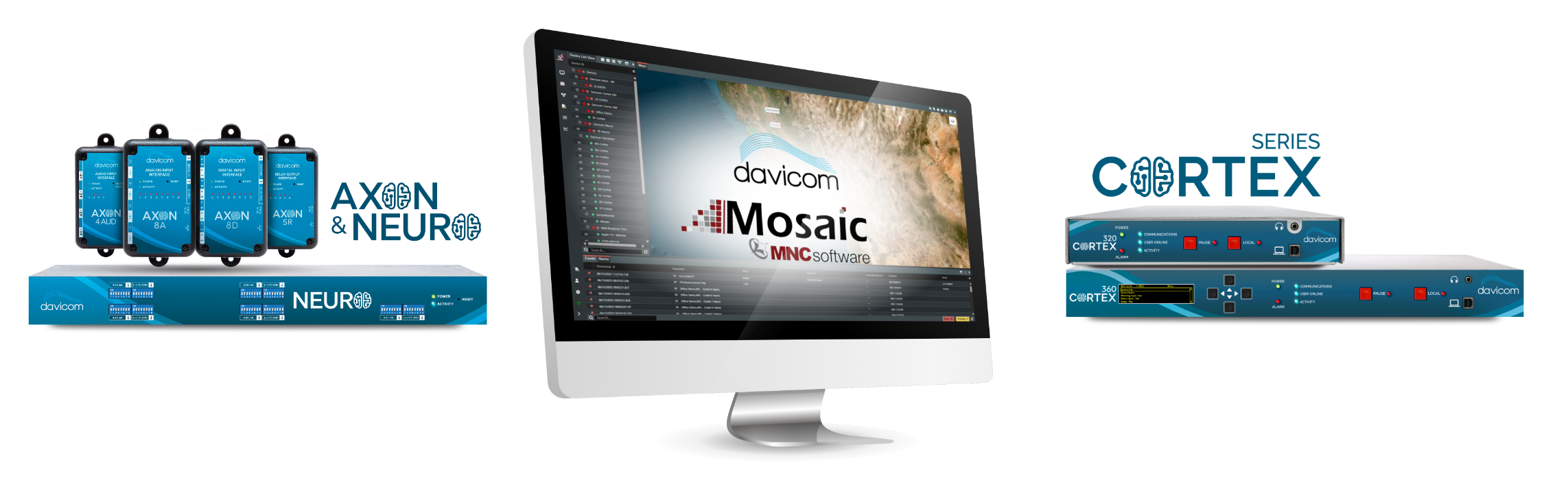

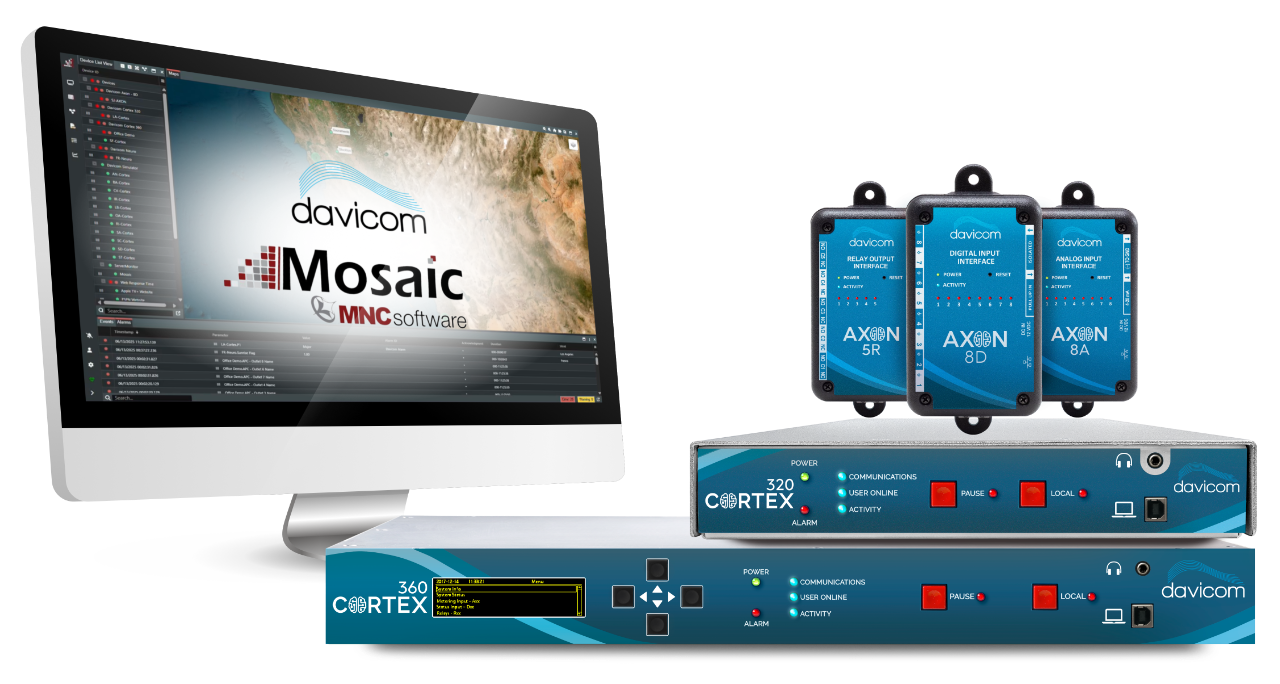

Mosaic by MNC Software is a pre-integrated Network Management System (NMS) designed specifically for Davicom RTUs: AXON, NEURO and Davicom CORTEX. It brings all site data into one interface, allowing operators to monitor network conditions and access detailed site information quickly. Alarms and logic are defined at the RTU level, making deployment simple and consistent. While Mosaic provides a centralized view with maps, alarm summaries and real-time site data, each RTU continues to operate independently, even without IP connectivity. This ensures that automation and alarm responses remain local, reducing bandwidth use and avoiding data loss.
Mosaic Network Management Software

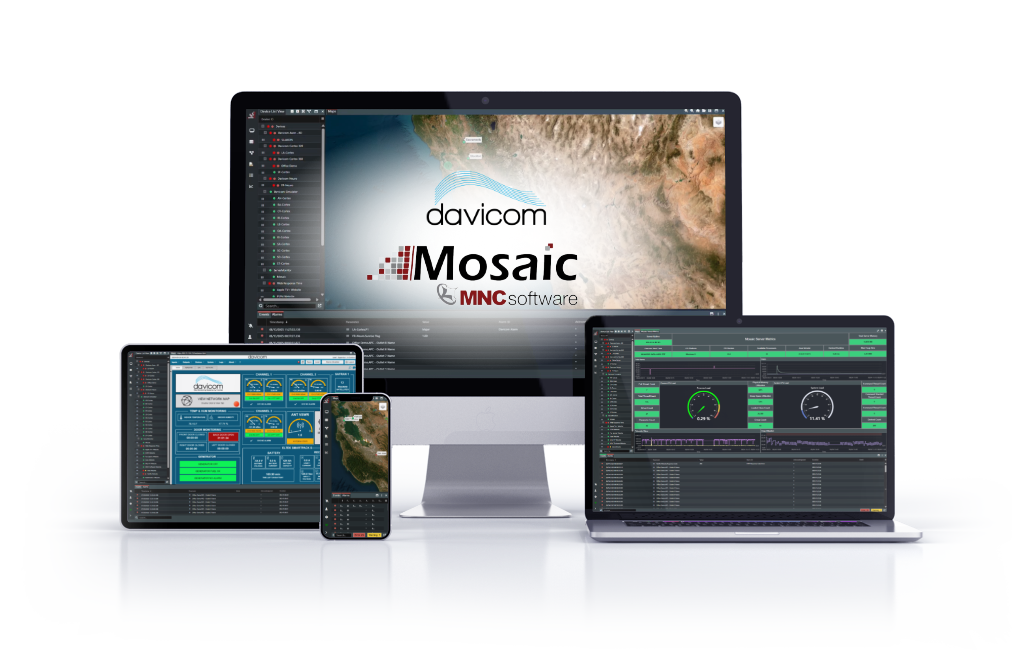

Built with flexibility and scalability in mind, Mosaic offers a real-time, customizable dashboard that delivers instant visibility into system health, alarms, and key performance metrics. Whether you’re managing a handful of repeaters or an extensive public safety network, Mosaic streamlines operations by consolidating data, enhancing situational awareness, and enabling faster decision-making from a single, intuitive interface.
Mosaic Key Features
Interactive Map View

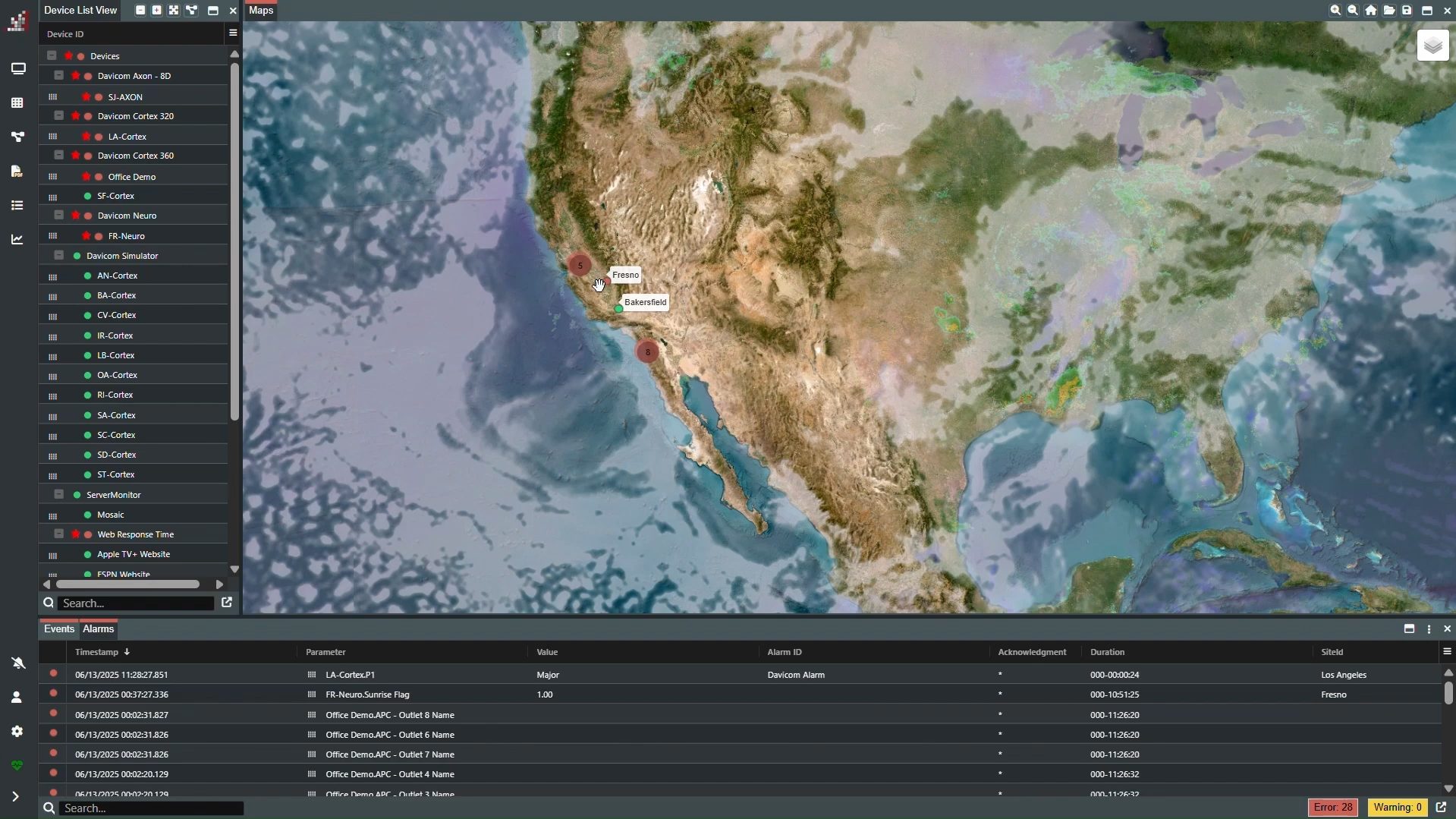

Quickly visualize all your sites and their status with intuitive alarm color-coding and symbols. Add layers such as precipitation, cloud coverage, wind speed, and more to gain a global view of weather conditions. Access any Davicom site RTU instantly by clicking its location on the map and opening a direct connection to the unit’s web GUI from within Mosaic for detailed monitoring and control.
Advanced Alarm Management
View, acknowledge, filter, and sort alarms in real time, making it easy to prioritize responses. You can configure alarm thresholds, set custom rules, and define escalation procedures to ensure the right people are notified at the right time. Audio signals also allow you to be made aware of unacknowledged alarms when you are not looking at the screen. With its intuitive dashboard, and annotation and logging capabilities, Mosaic gives you full control over alarm handling, helping streamline site management and improve overall situational awareness.
Reports
Generate detailed reports from default or pre-defined templates in a variety of formats (PDF, HTML, DOCX, XLSX, CSV) for easy sharing and documentation. These give you a comprehensive list of every alarm that occured in the specified time-frame, as well as the duration of the alarm. Reports can be scheduled or generated on demand to best fit your needs.
Data Analysis

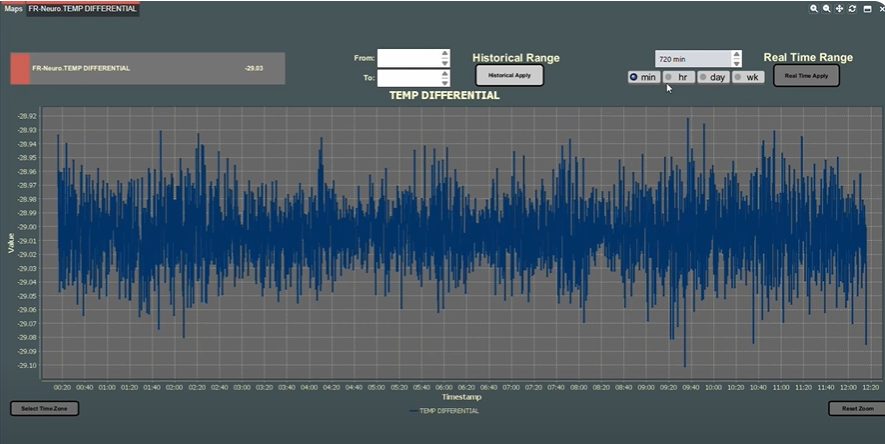

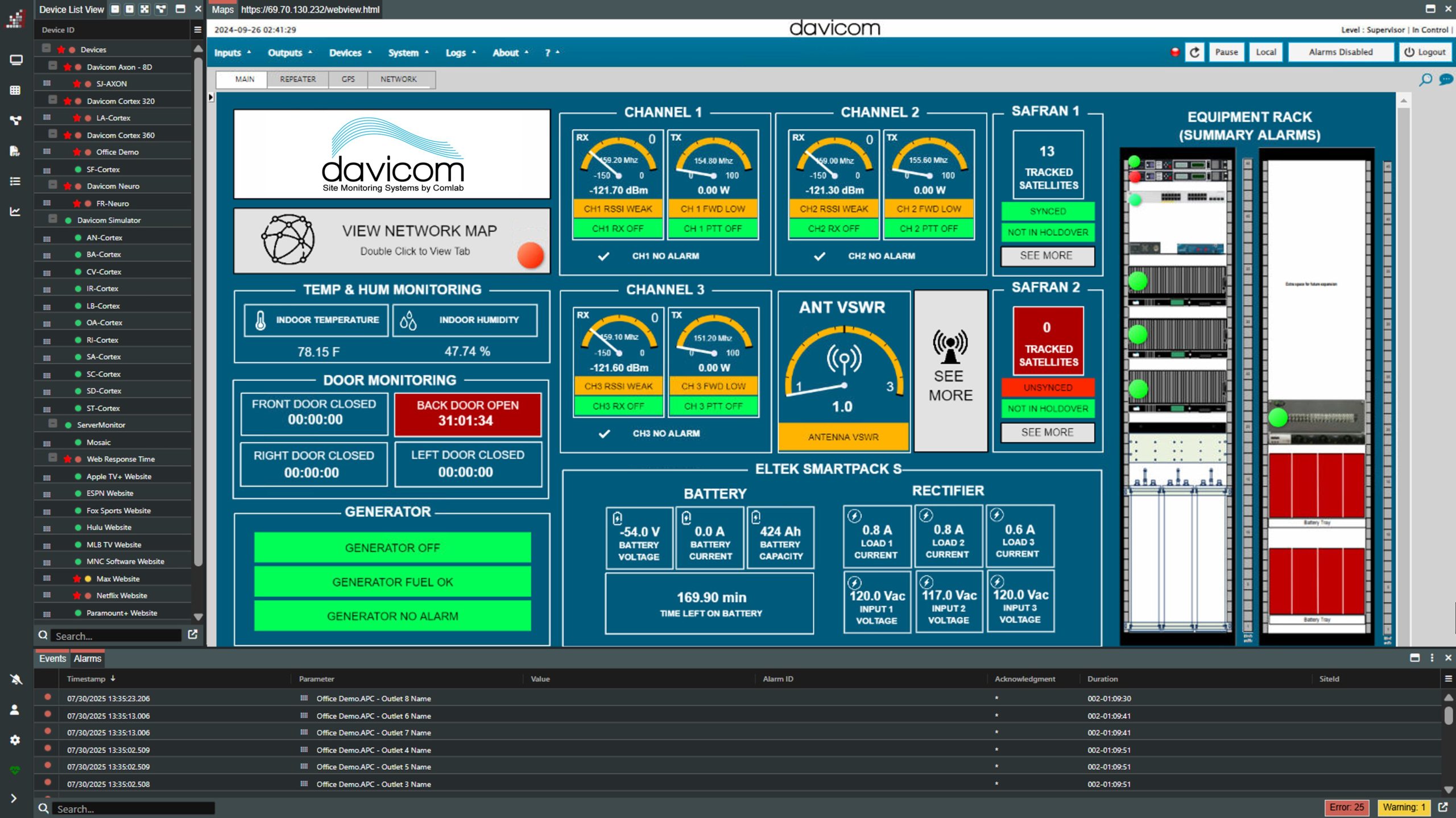

Aggregate, correlate, and interpret information collected from multiple Davicom monitoring units across your network. Mosaic acts as a centralized dashboard where you can view real-time statuses, generate historical trend graphs, and create customized alarms or reports based on specific parameters. By consolidating data from AXON, NEURO, and Davicom CORTEX series units, Mosaic enables deeper insights into network performance, helping you identify patterns, detect anomalies, and make informed decisions to improve reliability and operational efficiency.

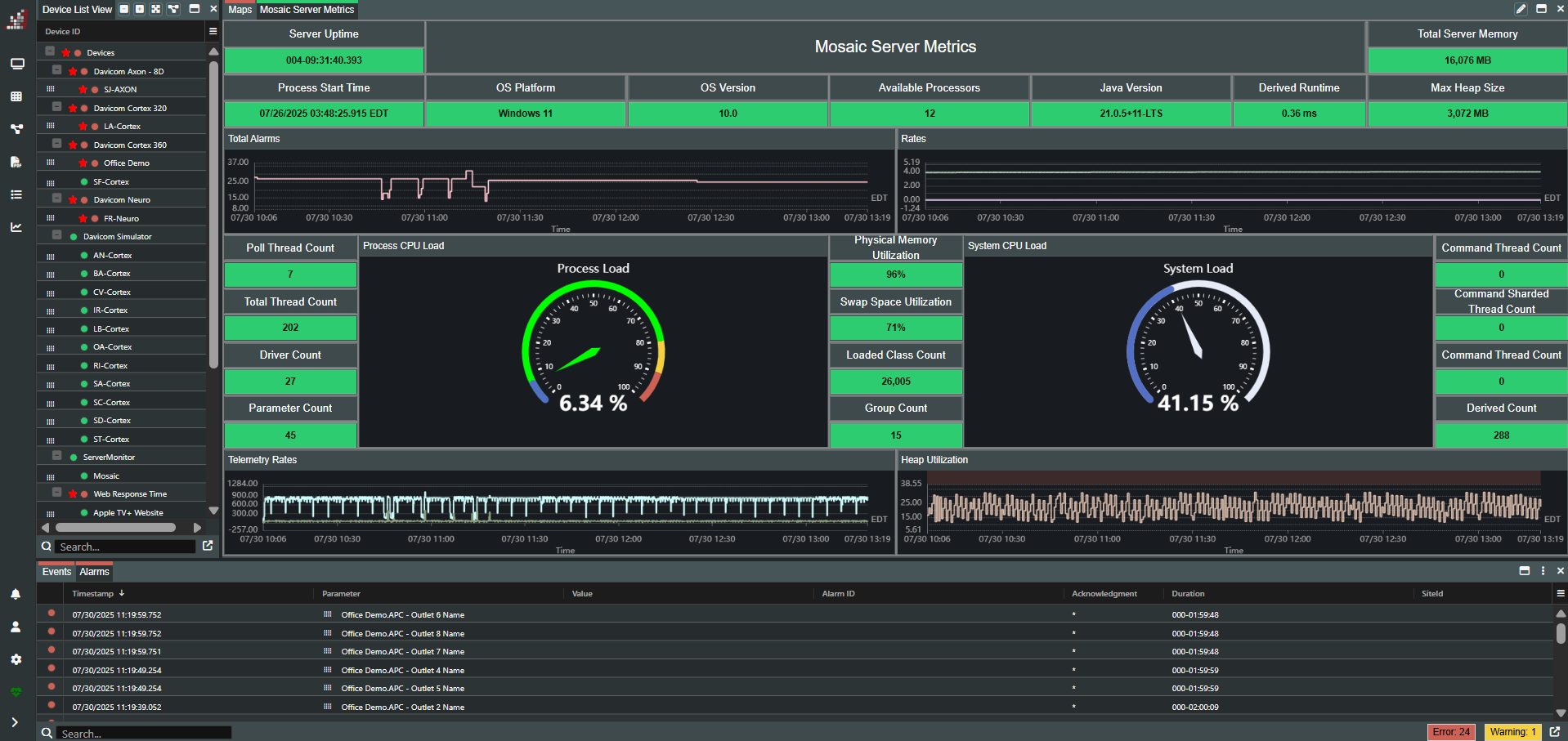

Customizable Dashboards
Group specific readings from multiple sites into one screen to get a network-level overview of your equipment status. For example, create a dashboard to display the status of the generators or VSWR antennas at all your sites.
Multi-User Support
Allow multiple users to connect to the software at the same time with defined user access levels. The simple graphical interface and map view also allows even non-technical operators to understand the display. They can then correct simple problems themselves or contact technically qualified personnel accordingly.
Flexible Installation
Mosaic can be installed onto any server that supports Windows or Linux. Therefore, you can install the software on an internal server from your organization, or on a cloud-based server.
Backup Server
Ensure your peace of mind by installing and running Mosaic on more than one server at a time. Easily switch to the backup server in case of a primary server failure, allowing all of Mosaic’s monitoring features to keep operating with no interruption.
Download the Brochure
PDF Version of the Complete Davicom Solution Including Mosaic.
Discover Our RTUs

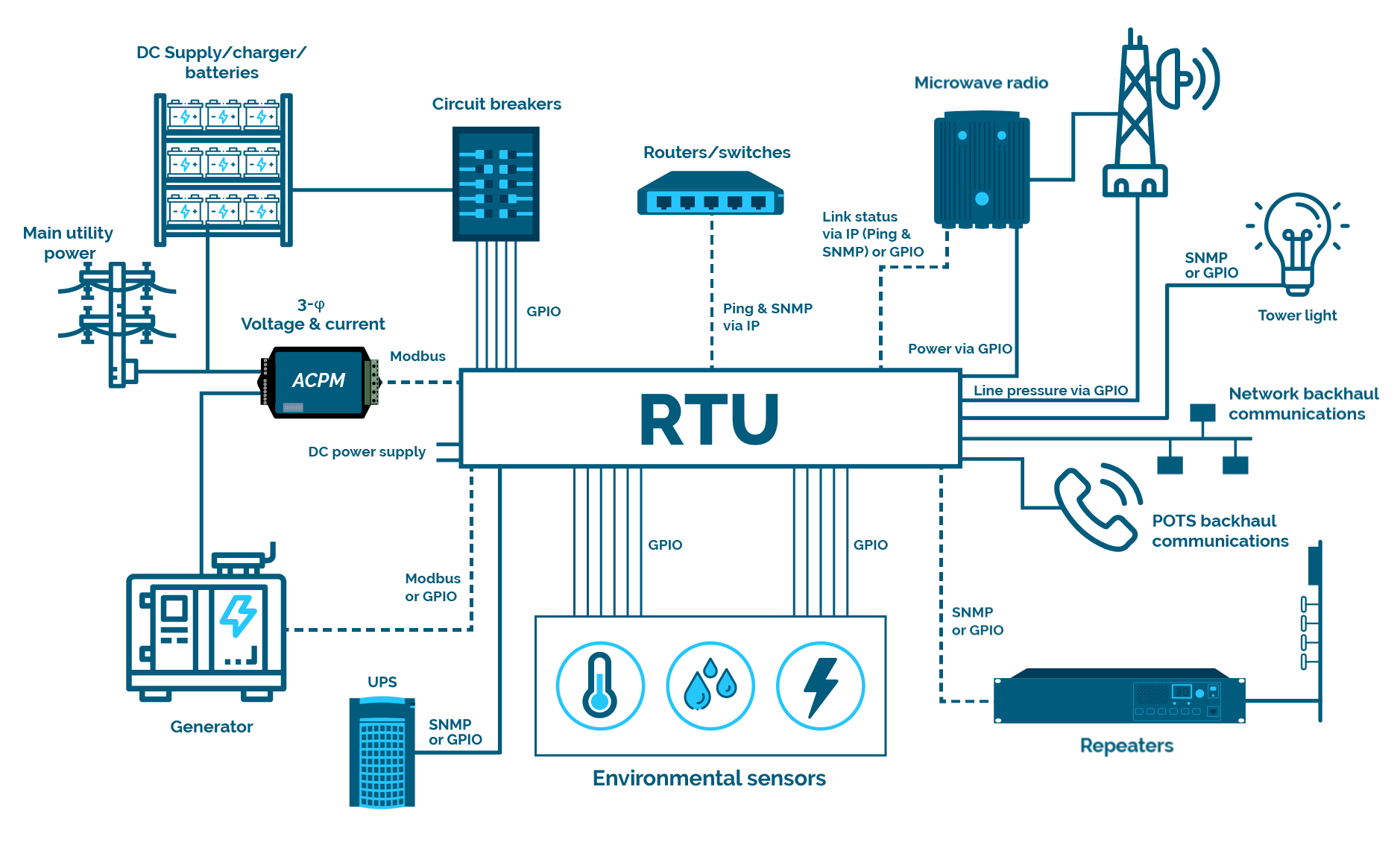

Why Do You Need an RTU at Each Site?
An RTU connects everything at your site, and sends reports and information to the NMS.
Repeater System Monitoring repeaters—such as those from TAIT, MOTOROLA, KENWOOD, ICOM, and EF JOHNSON—is essential to ensure uninterrupted mission-critical communications. Davicom RTUs can interface directly with these systems via SNMP (when supported) or through RF Power Sensors and PTT qualifiers. This allows for precise tracking of forward and reflected power, enabling early detection of antenna issues, signal degradation, or equipment failures, before service is disrupted.
AC Power Power outages are a top cause of remote site troubles. Davicom RTUs monitor utility power status and independently verify that switchover to backup sources (like UPS or generators) has occurred. This dual-check approach ensures no blind spots during outages. Moreover, Davicom monitors generator runtime, fuel levels, start signals, and transfer switch status. Through local inputs, SNMP, or Modbus (if the generator controller supports it), our RTUs confirm proper operation and flag issues immediately, so you’re never left in the dark.
Tower Lighting System Aviation safety rules often require constant awareness of tower light status. Davicom monitors light status, photoresistor sensors, and current flow to detect bulb failures, day/night transition issues, or system faults. When a fault is detected, alarms are sent instantly, helping you maintain compliance and reduce liability.
Microwave Links Microwave backhaul is the backbone of many communication networks. Davicom RTUs can monitor microwave radios using SNMP or GPIO, depending on equipment capability. Signal strength, Bit Error Rate (BER) link status, and radio health are tracked in real time, enabling preemptive maintenance and fast response to outages.
DC Distribution Panels Davicom RTUs can connect to DC panels through analog metering, status inputs, or directly via SNMP if supported. This enables monitoring of individual breaker states, current levels, and bus voltages. Early detection of anomalies like tripped breakers or voltage drops helps avoid service interruptions and simplifies power diagnostics.
Uninterruptible Power Supplies (UPS) With SNMP support, Davicom RTUs integrate effortlessly with network-enabled UPS systems. You can monitor battery charge, voltage, load percentage, runtime, and fault states, without adding extra hardware. Whether using SNMP polling or traps, Davicom provides a full picture of UPS readiness, ensuring critical systems are always protected.
Environmental Sensors Davicom integrates with a wide range of environmental sensors including temperature, humidity, smoke, water intrusion, lightning detection, and more. By collecting and correlating these readings, Davicom RTUs enable true situational awareness and trigger alarms or automated actions to protect equipment and maintain optimal conditions.
