Smart I/O Telemetry Units with up to
55 Configuration Possibilities

Davicom’s NEURO is a 1U 19’’ rack-mountable box that allows you to mix and match GPIO boards to give you precisely the I/O count that you need. These GPIO Boards, the NIO-8A for 8 Analog Inputs, NIO-8D for 8 Digital Inputs and the NIO-5R for 5 Relay Outputs, are inserted into 5 independent slots within the NEURO chassis.

The NEURO can be ordered with up to 5 NIO boards in various combinations to give, for example: 8 Analog Inputs and 5 Relay Outputs; 40 Analog Inputs; 40 Digital Inputs; 8 Analog and 8 Digital Inputs as well as 5 Relay Outputs. Many more combinations are possible, with a single constraint that a NEURO can only accept a maximum of 2 x NIO-5R boards. In this case, the 3 other slots can be populated with combinations of NIO-8A and NIO-8D boards.

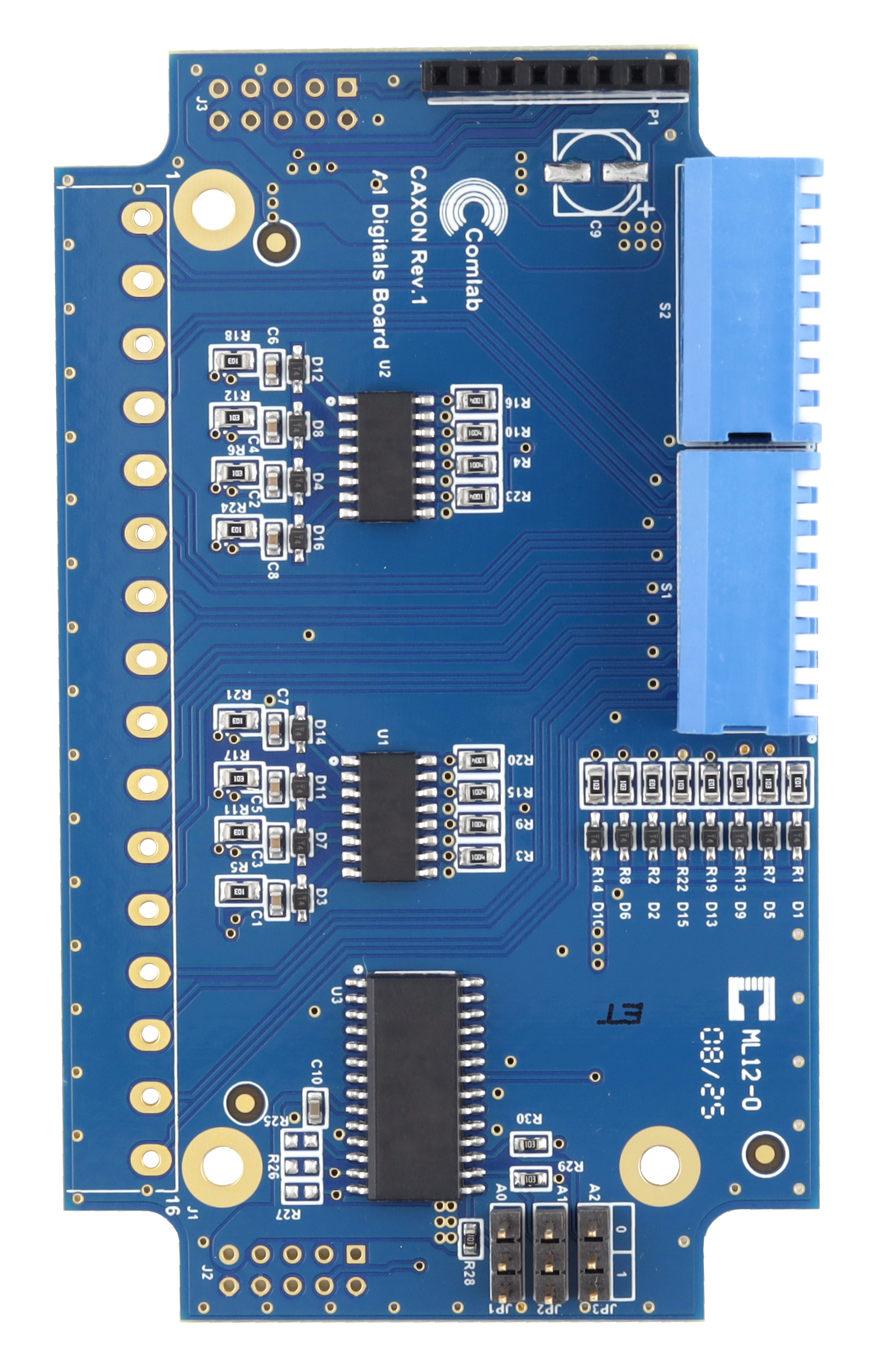

NIO-8D

8 Digital Input Card

The NIO-8D adds 8 digital inputs that are available for reading logic levels or wet/dry relay contacts, with programmable active high or active low settings. You can add up to 5 NIO-8D in a NEURO

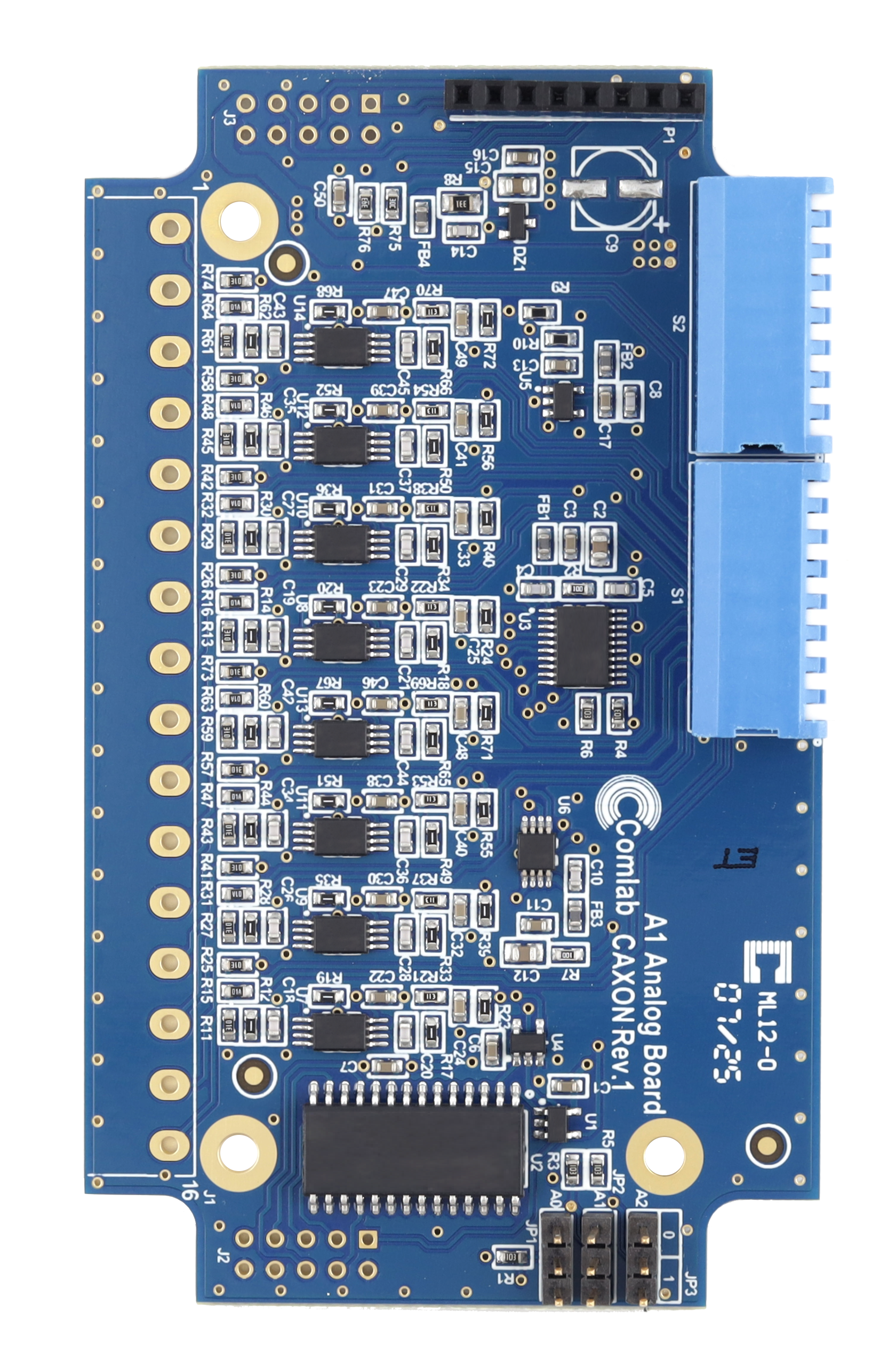

NIO-8A

8 Analog Input Card

The NIO-8A adds 8 flexible analog inputs that are bipolar & differential. They can accept signals from various sensors thanks to their numerous input ranges,  starting at  ±0.5 V all the way up to 40 V and including the 4-20 mA industrial sensor standard. You can add up to 5 NIO-8A in a NEURO.

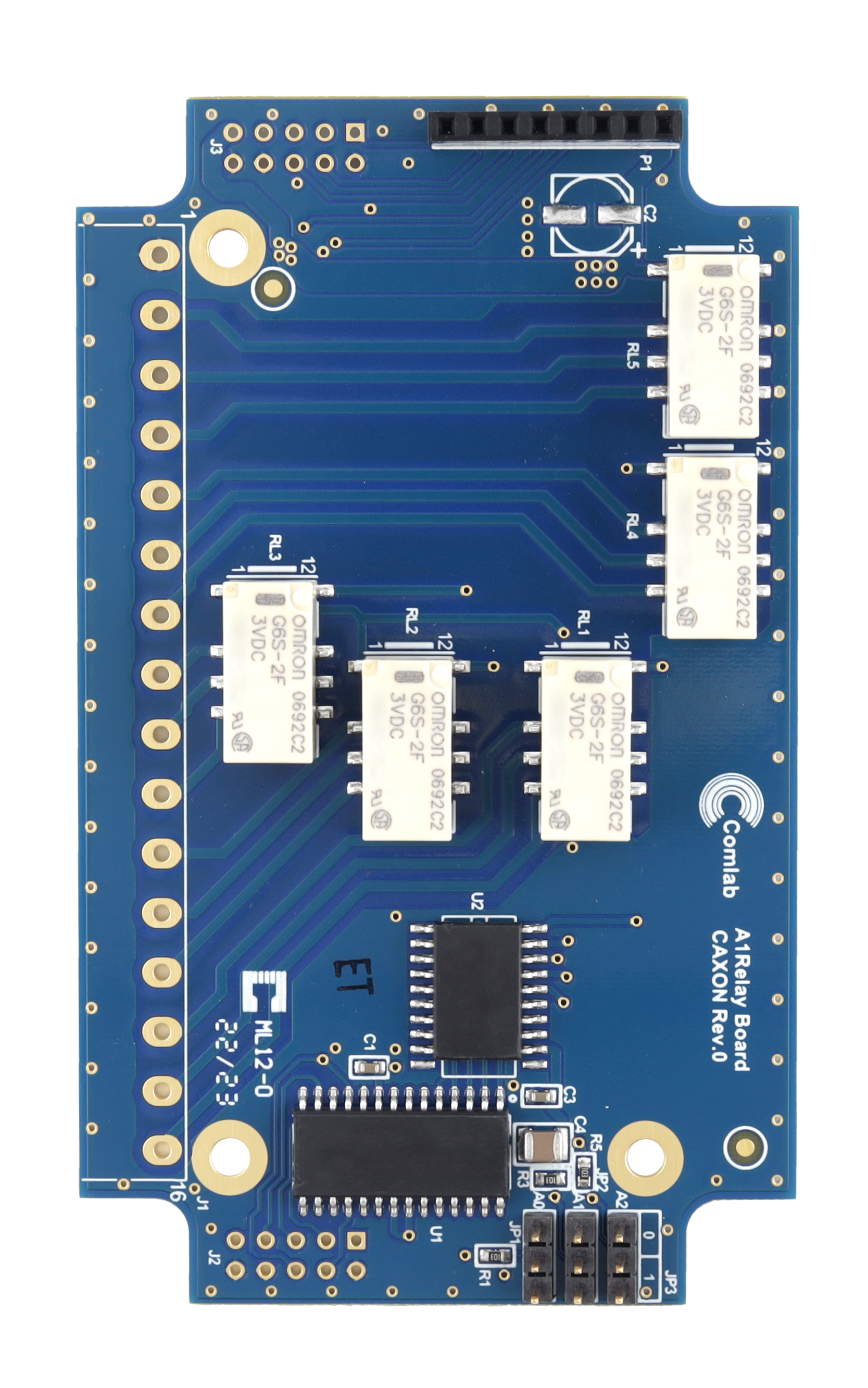

NIO-5R

5 Relay Output Card

The NIO-5R adds 5 Form-C Relays that can be used to control other on-site equipment. Relays can be pulsed or latched and also controlled by multiple sources. Maximum of 2 NIO-5R in a NEURO, with mix of 8A or 8D in 3 other slots

Configure Now

Available September 2023

Configure Now

Available September 2023

Configure Now

Available September 2023

NIO-8D

8 Digital Input Card

The NIO-8D adds 8 digital inputs that are available for reading logic levels or wet/dry relay contacts, with programmable active high or active low settings. You can add up to 5 NIO-8D in a NEURO

Configure Now

Available September 2023

NIO-8A

8 Analog Input Card

The NIO-8A adds 8 flexible analog inputs that are bipolar & differential. They can accept signals from various sensors thanks to their numerous input ranges,  starting at  ±0.5 V all the way up to 40 V and including the 4-20 mA industrial sensor standard. You can add up to 5 NIO-8A in a NEURO.

Configure Now

Available September 2023

NIO-5R

5 Relay Output Card

The NIO-5R adds 5 Form-C Relays that can be used to control other on-site equipment. Relays can be pulsed or latched and also controlled by multiple sources. Maximum of 2 NIO-5R in a NEURO, with mix of 8A or 8D in 3 other slots

Configure Now

Available September 2023

Engineered for Flexibility & Easy Configuration

Robust & Reliable. Made in Canada to the Highest Standards.

Factory Reset Button
Activity & Power LEDs
Switches For Easy Configuration

The above image shows a NEURO with a configuration of 5 NIO-8A Cards

Breakout Terminal for I/O Interface
RJ45 Ethernet
2.1 mm Locking Barrel Connector
Serial Port for Text Alarms to Compatible Radios & Cortex Unit-to-Unit Commands

Built for Demanding Applications

Davicom’s NEURO Product can be used for any application where General Purpose I/O (GPIO) is required. Sensor readings and Status inputs can be monitored and used to automatically control actions on output Relays.
Broadcast, Telecom, Land Mobile Radio, Utility, Transportation, Oil & Gas or Mining plants can all benefit from local, and smart, monitoring and control.

Sensors

Directly connect analog sensors or status sensors to your NEURO unit!

Environmental
Security
Level & Pressure
Power

No fiddling around with extra adapters, voltage reducers, boosters or inverters.

The NIO-8A’s analog inputs are very versatile since they are bipolar, high impedance (1 MΩ) and cover a wide range of inputs (±0.5, ±2.5, ±5, ±10, ±20, +40 or -40 V). In addition, industrial standard 4-20 mA signals are accepted. The differential feature also ensures noise-free operation when using long wiring runs.

The NIO-8D’s inputs can read logic levels or wet/dry relay contacts, and be software configured for active-high or active-low operation.

See our Catalog

Completely Autonomous with High Level Intelligence

Build Onboard Automations with Jobs, Schedulers & More!

The AXON/NEURO systems provide automation with decision making features and commands that go well beyond conventional telemetry systems.

Jobs (or State Machines) can be used to create advanced conditions that will initiate specific actions or combinations of actions. Math functions can calculate such things as averages, decibels and much more. Schedulers and timers can trigger events or actions depending on absolute time or time durations. Counters can compile numbers of events and trigger alarms if something happens too often, or not often enough. Plus, all these operations can be combined or cascaded to produce work-saving functions at the remote site.

Supports v1/v2c/v3

Complete SNMP Agent that is compatible with all SNMP Based Network Management Systems

The NEURO has a built-in SNMP agent to allow monitoring and control from a central SNMP manager (including Davicom’s CORTEX SERIES). When activated, this agent allows remote SNMP management systems to perform GETs, SETs and to receive TRAPs from the NEURO units.

This feature has the added benefit of converting readings from non-SNMP sensors or legacy site devices into SNMP-compliant readings.

Seamless Integration With the CORTEX Series

Use NEUROs as CORTEX Unit I/O Expanders

Running out of inputs or outputs on your Cortex units? Use these I/O modules as a cost effective solution to expand the number of I/O points of a Cortex unit The Modbus protocol ensures a fast polling rate while integration is achieved at the   click of a mouse button.

See the Cortex Series

Email, Radio & SNMP TRAP Alarms

Configure Alarms based on configurable threshold limits.

Alarm notifications can be sent by Email, or to an external SNMP Manager via SNMP TRAPs or INFORMs. Up to 5 alarm-call lists can be configured to notify different teams or to differentiate alarm severity.

Thanks to its RS-232 serial interface, the NEURO can send text messages to Radios using specific Two-Way Radio Serial Data Protocols (contact Davicom for specific protocols supported).

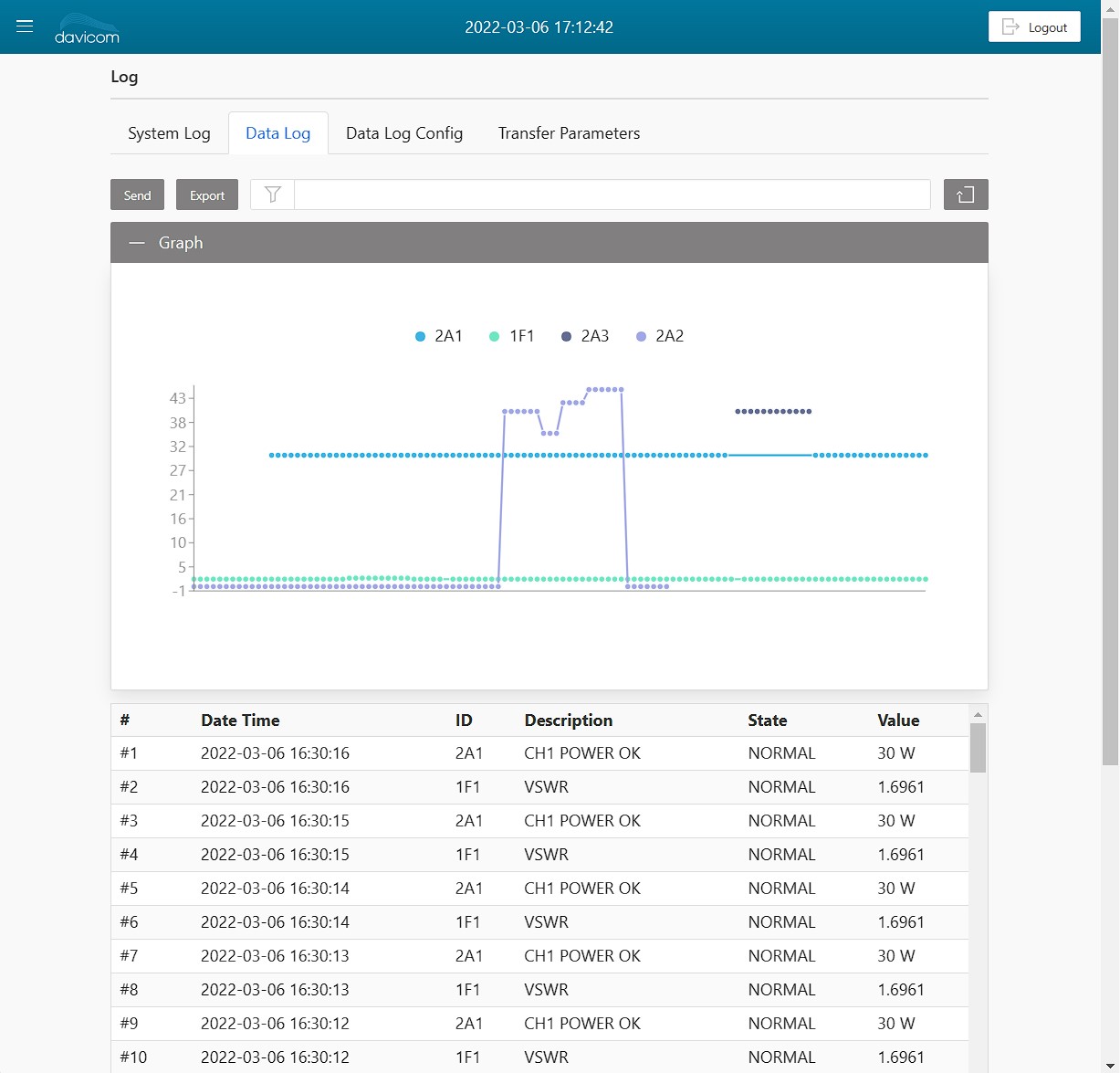

Data Logger & Event Log

Keep Track of Events and Sensor's Data

Data Loggers can be configured to keep track of sensor readings over time. Use the built-in logic of Jobs to start data logging based on logical conditions. Never lose any data and send reports by email periodically or when the data buffer is nearing its full capacity

Use Remote Commands to Control a NEURO at a Remote Location

Say hello to a complete network of interconnected AXONs & NEUROs that are capable of communicating amongst themselves without requiring an external server. Units can send bandwidth-efficient commands to control relays in remote NEURO/AXON-5R modules. Up to 8 commands can be sent to other units and can be triggered either manually or automatically using Virtual Actions or Jobs.

Use Remote Commands to Control an AXON
at a Remote Location

Say hello to a complete network of interconnected AXONs & NEUROs that are capable of communicating amongst themselves without requiring an external server. Units can send bandwidth-efficient commands to control relays in remote NEURO/AXON-5R modules. Up to 8 commands can be sent to other units and can be triggered either manually or automatically using Virtual Actions or Jobs.

Download the AXON & NEURO Brochure

Go Ahead, It’s Free!

HTML 5 Web GUI for Easy Configuration
& Status List View

Mobile Friendly GUI

Responsive workspaces ensure optimal viewing when using a smartphone or tablet.

Desktop GUI

Web pages are built using the HTML-5 standard thereby ensuring compatibility with various browsers.

Since an image is worth a thousand words, The AXON/NEURO’s customizable HTML 5-based GUI list view will help you and your system operators/technicians to quickly gain situational awareness of what is happening at the remote site.

Made Your Choice?
Ready to Order Your Unit?
Pre-Order Now

Available September 2023

Need something smaller?

Smart I/O Modules with Web, SNMP & Modbus

Davicom introduces new smart I/O modules specifically designed for smaller remote telemetry applications. They provide users with autonomous devices for alarm, monitoring & automation functionalities at a very competitive price.  Thanks to their SNMP agents, these products are the perfect remote telemetry companions to report to any SNMP Manager, including the Cortex Series. Moreover, their HTML5 web-based interfaces provide an easy-to-operate environment for visualization and configuration of the units. Choose between the AXON-8A, 8D or 5R

Need More Power & Unlimited Possibilities?

The Most Complete & Flexible Site Management Solution With an Integrated SNMP Manager & Modbus Master

Davicom’s CORTEX SERIES intelligent site management systems are designed to meet the most demanding requirements. These best-in-class, stand-alone monitoring and control units interface easily with virtually any type of remote site equipment and sensors through GPIO, MODBUS and SNMP, thereby ensuring maximum flexibility and expandability. Moreover, the advanced HTML5 web-based interface provides highly configurable views per user and an easy-to-operate environment from any device.
